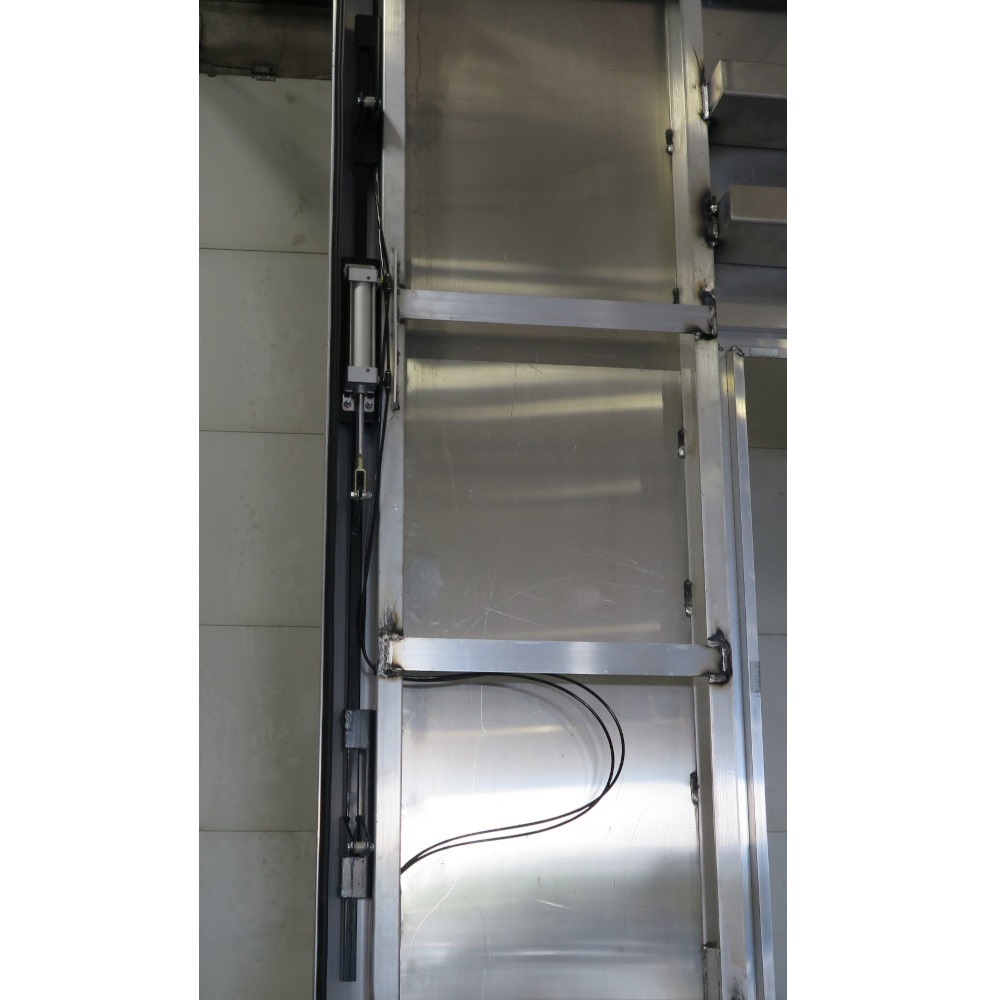

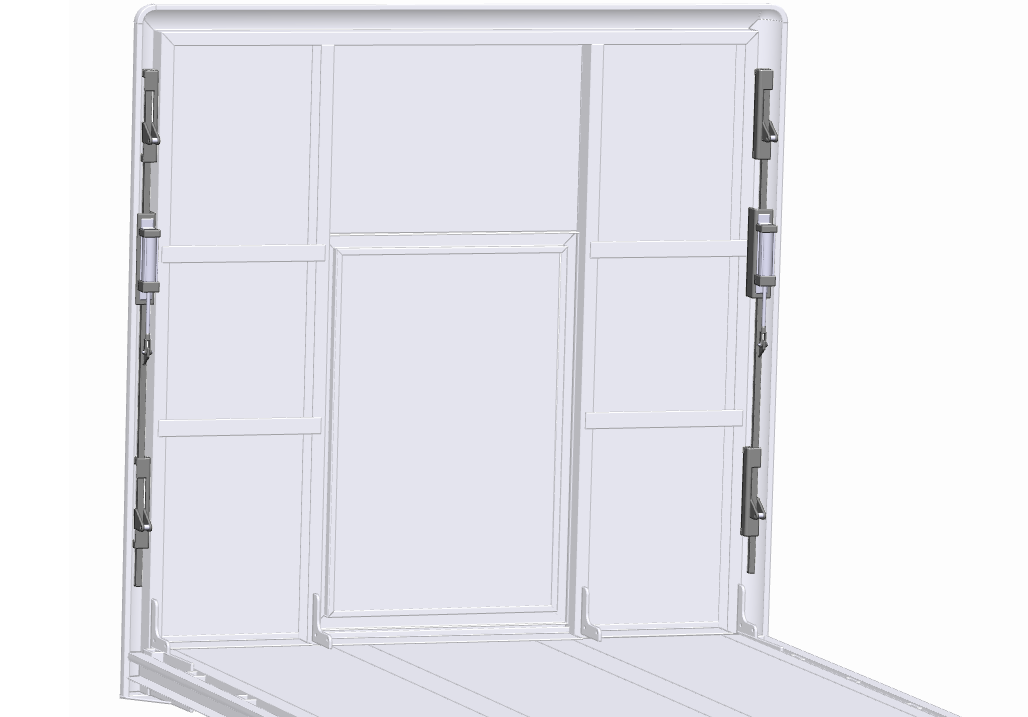

The headboard air lock option uses air cylinders to lock/unlock the front bow to/from the headboard. Before operating the air lock, tarp system tension must be reduced by releasing most of the tension at the back of the tarp system. A control valve is located near the driver-side lower corner of the headboard to toggle the air lock between locked and unlocked positions.
The headboard air lock option is available for both Quick Draw Tarpaulin Systems and Zippy Tarp Systems.
| Item ID | Description | Image |
| 023313 | Air Lock 2" Bore x 6" Stroke Pneumatic Tie Rod Cylinder |  |
| 022733 | Air Lock 7/16-20 Pneumatic Cylinder Clevis Rod End |  |
| 023314 | Air Lock 2 Position Push Pull Valve |  |
| 022728 | Air Lock Stainless Roller |  |

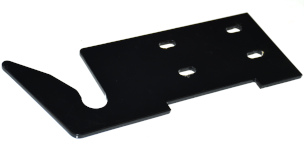

| 022730 | Air Lock Bow Hook |  |
| 022744 | Air Lock Safety Lockout Air Directional Control Valve |  |
| 023315 | Air Lock Brass Ball Valve |  |
| 025135 | Air Lock 90° Male Hose Coupler (3/8" NPTS x 3/8"): 2025+ |  |
| 025136 | Air Lock Male Tee Hose Coupler 3/8" Tube x 3/8" NPT: 2025+ |  |
| 022738 | Air Lock 3/8" NPT x 1/4" NPT Brass Bushing/Reducer |  |
| 025150 | DOT Union Tee Tube fitting - 1/2x1/2x3/8 |  |
| 022742 | Air Lock 1/4" NPT Male Hex Nipple |  |
| ? |  |
|
| 008077 008789 008922 |
5/16" - 18 x 1" Hex Cap Gr 5 Plated 5/16" - 18 Nylon Insert Hex Locknut Plated (Nylock) 5/16" Standard Flat Washer Plated |
 |
| 008104 008790 008923 |
3/8" - 16 x 1-1/2" Hex Cap Gr 5 Plated 3/8" - 16 Nylon Insert Hex Locknut Plated (Nylock) 3/8" Standard Flat Washer Plated |
 |
| 023442 | Air release sticker |  |
| 023440 | Air Lock Pinch Point sticker: Driver-side |  |
| 023441 | Air Lock Pinch Point sticker: Passenger-side |  |
