QDTS

Quick Draw Tarpaulin Systems

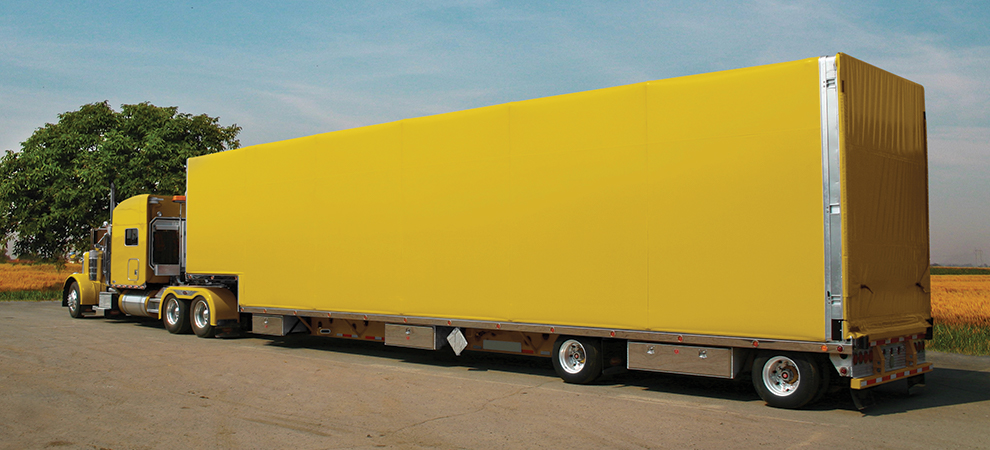

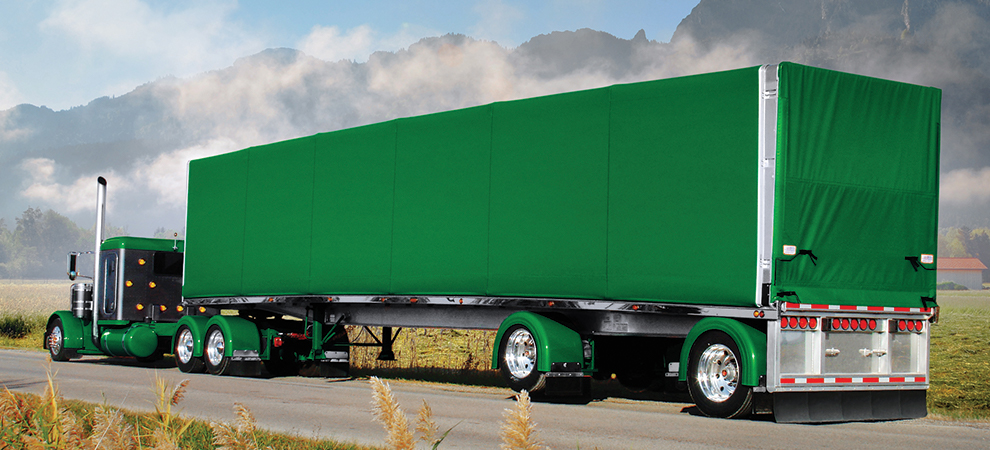

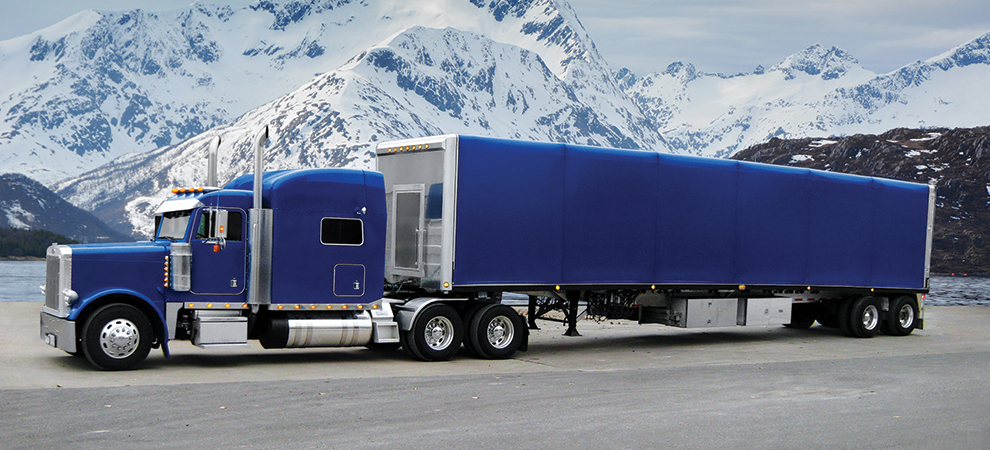

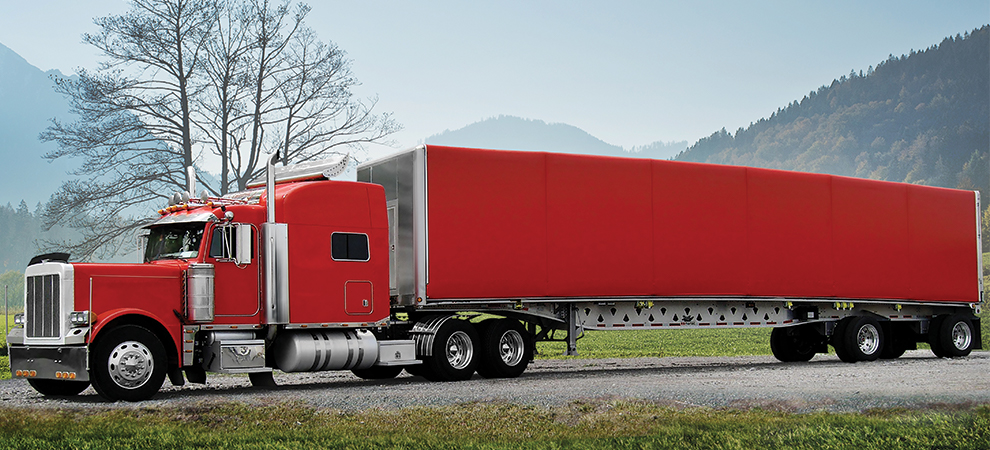

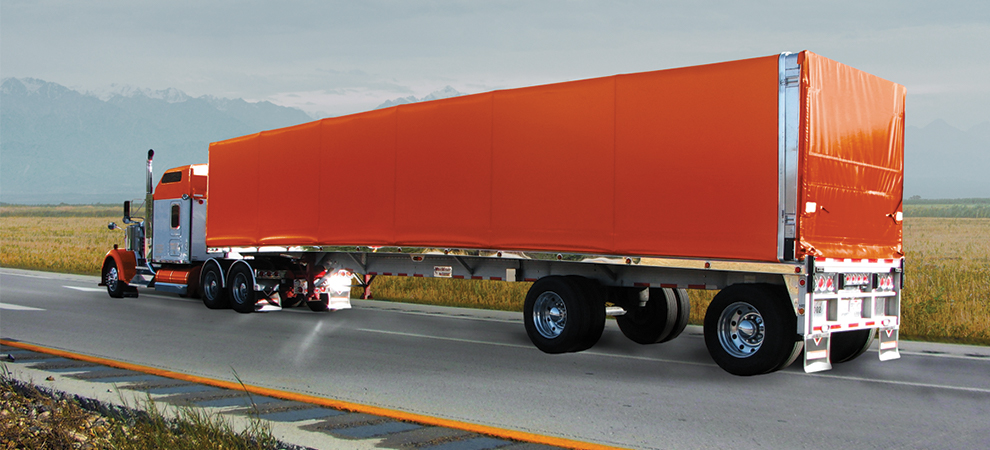

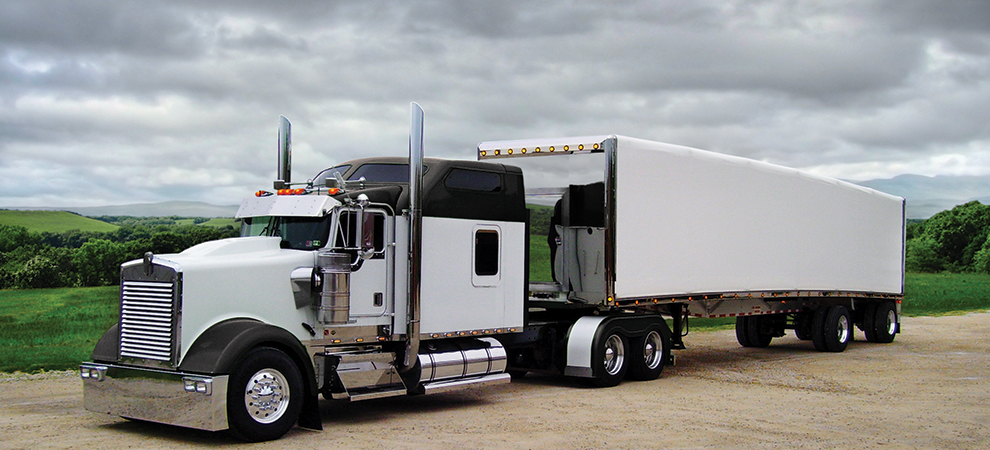

Our signature product line is the Quick Draw Tarpaulin Systems retractable tarp system for flatbed trucks and trailers, including drop deck and double drop deck trailers.

With over 30 years of experience, Quick Draw remains renowned for its rock-solid design, quality workmanship, and fast repair turnaround times.

Experience the difference... experience Quick Draw.

1 / 6

2 / 6

3 / 6

4 / 6

5 / 6

6 / 6

❮ ❯

Quick Draw because...

Stronger and Lasts Longer: A solid framework that will last as long as the equipment it's installed on.
Lowest Maintenance Costs: Analyze your maintenance costs over 3, 4, 5 or any number of years, Quick Draw comes out the champ.
Lowest Price Replacement Parts: Just another advantage that comes with a tarp system that is the industry leader.
Parts Compatibility: High level of backward/forward parts compatibility over many years simplifies repairs for systems new and old.
Parts are In Stock: Most parts are standardized and stocked at many locations.
9 Locations and Many Dealers: To serve customers better wherever they are located throughout the USA and Canada.

Quick Draw Features

Compact: System compacts down to 8 feet on a full length trailer.
Versatile: Tension the front of the system without the need to walk to the back of the trailer.
Smooth Appearance: No fasteners through the tarp panels.
More Aluminum = More Strength: 3/16" bow thickness, 3/16" headboard plate thickness, ...no compromise.

Quick Draw Options

Headboard Access Door: Available in 2 sizes.
Headboard Grab Handle: Add comfort and safety to movements.
Headboard Vents: Allows for air flow within tarp system.
Headboard Chain Binder Bars: Up to 4 positions.
Headboard Shelves: Up to 2 levels with options for full shelf across the top of side shelves.
Headboard Floor Boxes: Up to 2 boxes positioned on either side behind the headboard.
Headboard Air Lock: Lock the front bow with air cylinders.
Headboard Wind Deflector: Increase aerodynamics.
Headboard Light Bar: 9 lights across the top. Choose from several light sizes/styles.
Track Light Bar: Mounted below track. Choose from several light sizes/styles.
Interior Spotlight: Choose single or double.
Mirror Finish Stainless Steel Wrap: Options available for headboard and light bars.
Interior Ratcheting: Tension the system at the front from inside the trailer.
4 Point Lifter Bows: Better clearance over high loads.
Custom Height: Choose an exact height for the tarp system.
Back Flap Rope and Pulley: An alternative approach to opening the back flap.

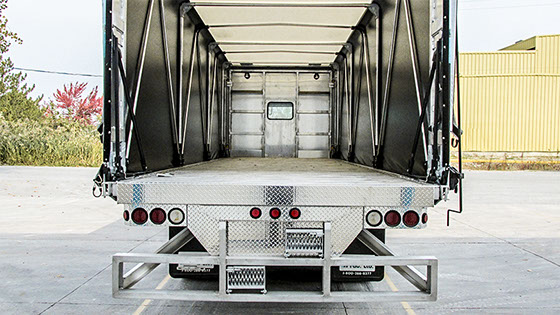

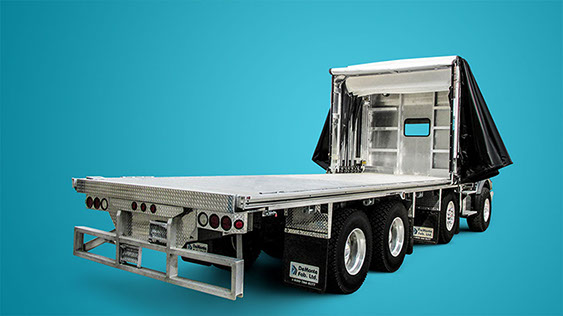

Aluminum Flatbed Platforms

These uniquely designed aluminum flatbed decks demonstrate a level of truck body detail far beyond ordinary. Lighter weight and no rust are practical advantages, but maybe you just want to have the best looking equipment on your truck to go along with the good name of your business.

Aluminum Platform Features

Light Weight: Lighter weight compared to an equivalent steel platform.
No Rust: It’s all aluminum.
Stays Clean: Fewer places for road debris to accumulate on the underside compared with steel platforms.
More Ways to Tie Down: J-plate tie down hook points are integrated into the aluminum side rails.
Side Rail Pockets: Choose with or without side rail pockets.
Width: Choose 102" or 96".
Length: Choose any custom length.
Lighting: Lighting and wiring conform to FMVSS and CMVSS; doubled jacketed heavy duty wiring harness.
Main Sills: 8" aluminum box section.
Floor: Aluminum flooring also acts as cross members.
ICC Bumper and Mud Flaps: Included.
Welding: All welding conforms to CWB-W59.2 standards.
Chassis Connection: Integrated retaining brackets bolted to chassis frame.
Load Capacity: Designed to meet cargo capacity as specified by chassis manufacturer.

Aluminum Platform Options

Tie Downs: Sliding webbing winches.
Tie Downs: Various nylon cargo straps.
4' Headboard: CNC cut diamond pattern window.
Quick Draw Headboard: Lexan window.
Interior Spotlights: Installed on headboard.
Toolboxes: Headboard and/or underbody.
Dock Bumpers: Installed on rear apron.
Folding Steps: One or two safety grip folding steps installed on rear.
Fold-out Truck Steps: Pull out and fold out steps installed on rear.
Deluxe ICC Bumper: Installed on rear.
Lighting: Deluxe tail light boxes.
Customize: Custom options available.

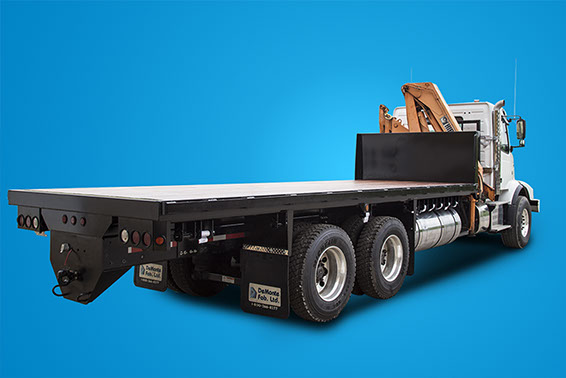

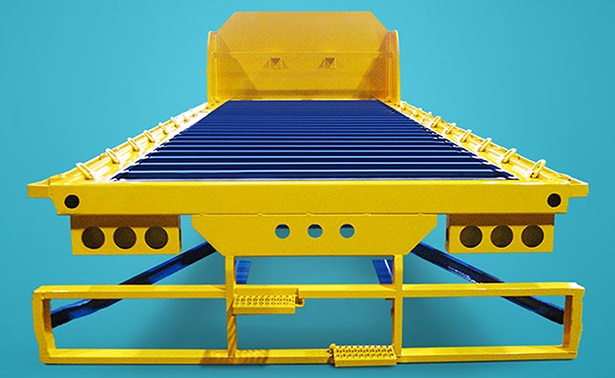

Steel Flatbed Platforms

Our manufactured-to-order steel flatbed platforms stand apart from the average deck in strength, build quality, features, and options.

Steel Platform Features

Side Rail Pockets: Choose with or without side rail pockets.
Width: Choose 102" or 96".
Length: Choose any custom length.
Lighting: Lighting and wiring conform to FMVSS and CMVSS; doubled jacketed heavy duty wiring harness.
Main Sills: 8" structural steel channel main sills (6" optionally available).
Side Rails: 6" structural steel channel side rails with 6" formed steel rear apron.
Cross Members: 4" structural steel channel cross members on 12" centers (3" channel optionally available).
Floor: 1-3/8" apitong wood floor.
ICC Bumper and Mud Flaps: Included.
Paint Prep: All steel structures are sand blasted and primed with epoxy.
Paint Finish: Polyester urethane enamel black paint finish.
Welding: All welding conforms to CWB-W59 standards.
Chassis Connection: Integrated retaining brackets bolted to chassis frame.
Load Capacity: Designed to meet cargo capacity as specified by chassis manufacturer.

Steel Platform Options

Tie Downs: Sliding webbing winches.
Tie Downs: Various nylon cargo straps.
4' Headboard: CNC cut diamond pattern window.
Quick Draw Headboard: Lexan window.
Interior Spotlights: Installed on headboard.
Toolboxes: Headboard and/or underbody.
Dock Bumpers: Installed on rear apron.
Folding Steps: One or two safety grip folding steps installed on rear.
Fold-out Truck Steps: Pull out and fold out steps installed on rear.
Deluxe ICC Bumper: Installed on rear.
Lighting: Deluxe tail light boxes.
Customize: Custom options available.

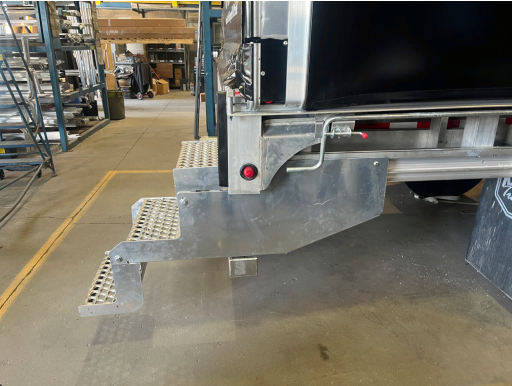

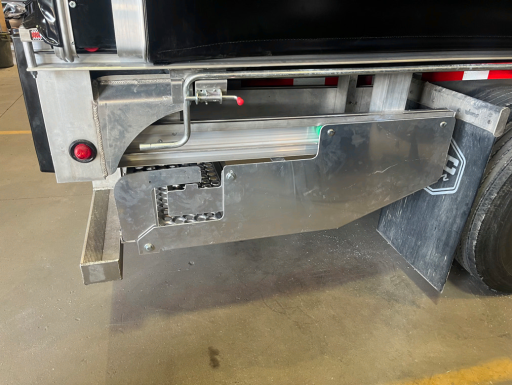

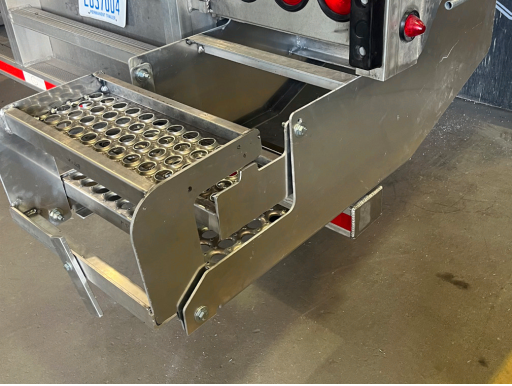

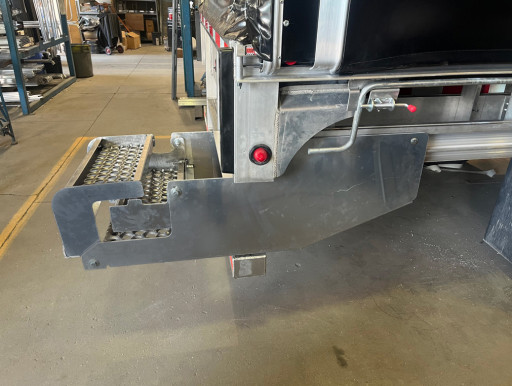

Fold-out Truck Steps

Quickly and conveniently fold out and fold away a very comfortable and safe set of steps for your truck or trailer.

Fold-out Truck Step Features

Aluminum Construction: Built from lightweight, corrosion resistant aluminum.
Compatible: Can be installed on a variety of trailers and truck chassis used in the transportation industry.
Versatile: Can be located in either a centered or off-center configuration under the rear of the vehicle.
Fast and Safe: Provides rapid deployment, ease of use, and peace of mind in a modern working environment where speed and safety are key.
Comfortable: Aid in driver retention by increasing the drivers comfort, confidence, and productivity while working in all weather conditions.

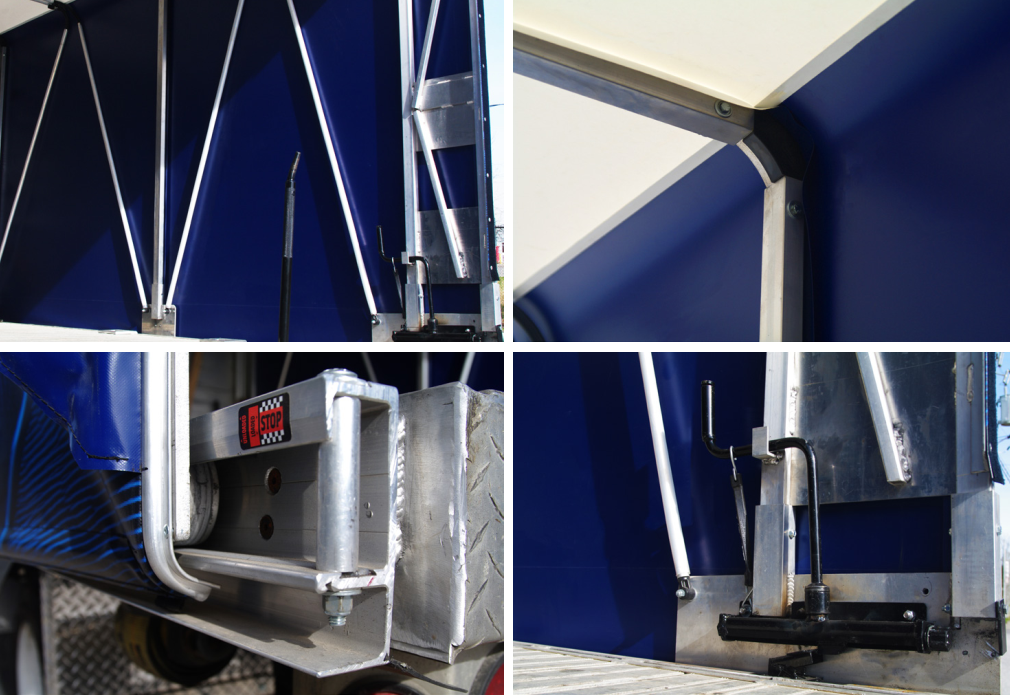

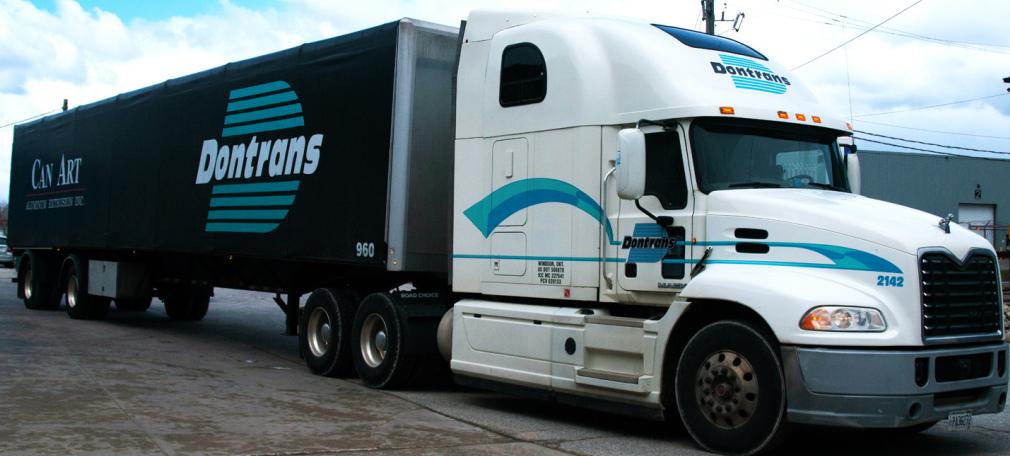

Zippy Tarp Systems

Our latest product line is the Zippy Tarp Systems retractable tarp system for flatbed trucks and trailers.

The Quick-lock rear bow lock does not require rear braces.

Experience the difference... experience Zippy.

Zippy Tarp System Features

Light Weight: Among the lightest weight tarp systems on the market.
Zippy-lock: Patented Zippy-lock technology for quick and neat tensioning without the need for heavy ratchet posts.
Wheels: Military-grade stainless steel wheel bearings.
Modular Design: Enables fast and economical repairs.

Zippy Tarp System Options

Headboard Access Door: Available in 2 sizes.
Headboard Grab Handle: Add comfort and safety to movements.
Headboard Vents: Allows for air flow within tarp system.
Headboard Chain Binder Bars: Up to 4 positions.
Headboard Shelves: Up to 2 levels with options for full shelf across the top of side shelves.
Headboard Floor Boxes: Up to 2 boxes positioned on either side behind the headboard.
Headboard Air Lock: Lock the front bow with air cylinders.
Headboard Wind Deflector: Increase aerodynamics.
Headboard Light Bar: 9 lights across the top. Choose from several light sizes/styles.
Interior Spotlight: Choose single or double.
Mirror Finish Stainless Steel Wrap: Options available for headboard and light bars.
4 Point Lifter Bows: Better clearance over high loads.
Custom Height: Choose an exact height for the tarp system.
Back Flap Rope and Pulley: An alternative approach to opening the back flap.
